Inserción de Metal a Plástico por Inducción

Desde 1986 ofrecemos las más avanzadas soluciones de encastrado térmico. Nuestra experiencia en ingeniería de diseño de las soluciones de unión de componentes de plástico y metal ha sido aplicada por varios productores de la industria automotriz a nivel mundial.

Contáctenos

Inserción de Metal a Plástico por Inducción

Desde 1986 ofrecemos las más avanzadas soluciones de encastrado térmico. Nuestra experiencia en ingeniería de diseño de las soluciones de unión de componentes de plástico y metal ha sido aplicada por varios productores de la industria automotriz a nivel mundial.

Contáctenos

Si su proceso requiere el encastrado térmico de insertos metálicos con rosca insertados en plásticos o el moldeo por inyección, disponemos de la mejor solución térmica para su aplicación.

Notas de Aplicación de inserción de metal a plástico por Inducción [EN]

Haga clic para leer cómo la por inducción puede mejorar la eficiencia, la eficacia y la seguridad de su proceso de calentamiento.

Desplazarse por todas las notas de inserción de metal a plástico


Heating Steel Inserts for Metal-to-Plastic InsertionHeating Steel Inserts for Metal-to-Plastic Insertion

It took 5 seconds with a 2 kW EASYHEAT to reach temperature, which melted the plastic for a solid bond without cracking the molded plastic.

Heating four brass inserts prior to insertion into a plastic motor housingHeating four brass inserts prior to insertion into a plastic motor housing

Using induction heating, the parts came to the required temperature in just 15 seconds in a highly repeatable heating method and a coil plate could offer protection against operator movement/errors

Heating stainless steel inserts for an insertion applicationHeating stainless steel inserts for an insertion application

Induction offers dramatically faster heating when compared to ultrasonics; faster heating means there is the potential to dramatically increase production rates with a highly repeatable and easy-to integrate processes.

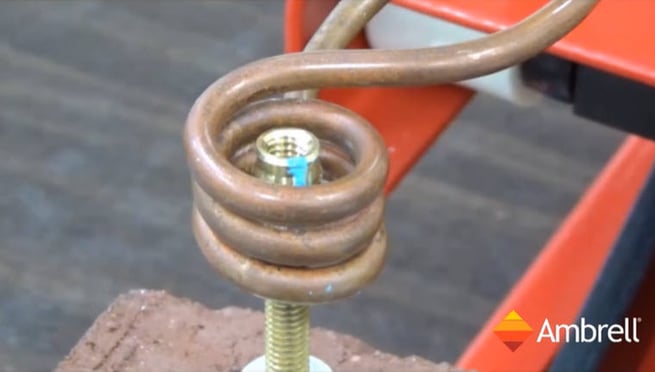

Heating brass inserts for metal-to-plastic insertionHeating brass inserts for metal-to-plastic insertion

Innovation: Ambrell's Applications Lab was able to solve a problem that a competitor couldn't solve, which is a key benefit when purchasing induction solutions from Ambrell

Bonding plastic handles onto metal broomsBonding plastic handles onto metal brooms

With a more reliable induction heating system, they will not have to worry about lost production due to power supply issues that come with an unreliable system

Metal-to-plastic insertion of threaded magnetic steel insertsMetal-to-plastic insertion of threaded magnetic steel inserts

Outdated equipment and poor responsiveness drove this customer to a new vendor who could help them with new or improved processes for new or enhanced solutions

De-bonding a magnetic steel paint can lidDe-bonding a magnetic steel paint can lid

Induction is used to bond the device sheath to collet. Innovative coil design lifts production rate.

Heat a steel shaft for metal-to-plastic insertionHeat a steel shaft for metal-to-plastic insertion

Induction heating provides hands-free heating that involves no operator skill for manufacturing, even distribution of heating and localized application of energy limits temperature drift

Inserting brass bushing into plastic wire connectorInserting brass bushing into plastic wire connector

A three turn helical coil is used to heat the brass bushing. The brass bushing is heated for 2 seconds and then placed on the wire connector & pressed into position.

Heating magnetic steel for insertion into polypropylene for pallet manufacturingHeating magnetic steel for insertion into polypropylene for pallet manufacturing

Induction heating provides 'greener' manufacturing of pallets using reusable, recyclable materials, hands-free heating that involves minimal operator skill for manufacturing and even distribution of heating

Inserting threaded brass parts into plastic thermostat housingInserting threaded brass parts into plastic thermostat housing

This application has three different coils for varying hole patterns. A three turn oblong coil is used to heat 2 brass inserts in close proximity.

Inserting a piston stop with o-ring into an oil pump assemblyInserting a piston stop with o-ring into an oil pump assembly

Induction heating provides increased production speed, simpler tooling for customer, hands-free heating that involves no operator skill for manufacturing

Bonding of electric motor shaft to nylon face fanBonding of electric motor shaft to nylon face fan

Induction heating provides hands-free heating that involves no operator skill for manufacturing, only the metal shaft is heated so the motor is not affected, increased production due to rapid heating, decreased failure rate, originally used glue which ran into motor and caused failure and stronger bond

Heating Four Inserts SimultaneouslyHeating Four Inserts Simultaneously

The brass inserts are to be heated prior to insertion into a plastic automotive sub assembly

Brass InsertsBrass Inserts

Heating is to be accomplished within 5 seconds, and can be done in a helical coil since pick and place manufacturing is employed.

Plastic Lawn ChairsPlastic Lawn Chairs

To heat internally threaded steel inserts to a temperature above 650F for insertion into plastic lawn chair assemblies.

Brassiere UnderwireBrassiere Underwire

To heat the ends of 0.072-inch spring wire, spaced 1/2 inch apart, uniformly for the application of nylon powder on a 1inch length of the end.

Inserting Steel Studs into a Plastic Tail LightInserting Steel Studs into a Plastic Tail Light

To heat threaded steel studs for insertion into a plastic tail-light assembly at 450°F.

Nota de Destacado

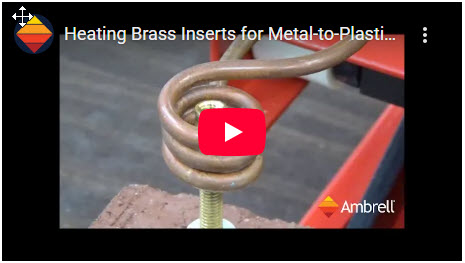

Video de inserción de metal a plástico Destacado



Acerca de Inducción Calentamiento

El calentamiento por inducción es un método rápido, eficiente, preciso, repetible y sin contacto para el calentamiento de metales u otros materiales conductores de la electricidad. Los sistemas de calentamiento por inducción constan de una fuente de alimentación de inducción que convierte la potencia de la red eléctrica en una corriente alterna y la suministra a un cabezal de trabajo, y una bobina de trabajo que crea un campo electromagnético dentro de la bobina.

Consulte nuestro folleto de 4 páginas; obtenga más información sobre cómo la ciencia de la tecnología de inducción puede resolver sus problemas con el calentamiento de precisión.

Leer

Acerca de Inducción Calentamiento
