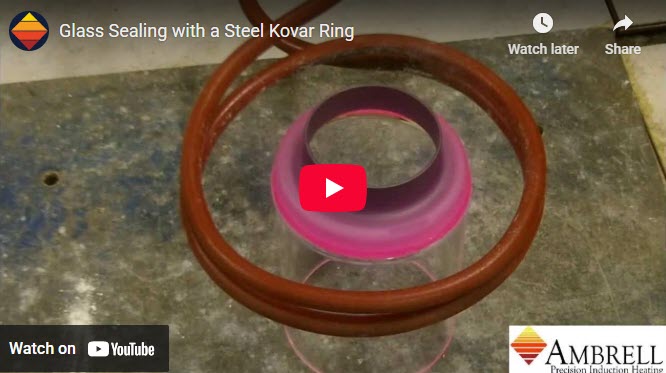

Heating a Kovar tube for a glass sealing application
The client was using a torch, and operator error was slowing the heating. The repeatability of induction enables improved throughput while in this process it is a more efficient heating method than torch heating, also reducing scrap
Hermetically sealing glass-enclosed resistors
Induction heating provides precise, consistent heat to very small parts resulting in repeatable, quality seals. By heating with medium frequency, arcing (which occurs at high frequencies) is avoided.
Heating a Kovar Ferrule for Glass Soldering
The solder formed a relatively uniform domed seal around the fiber despite the asymmetry of the open C coil. It took under 10 seconds to heat the part to soldering temperature
Soldering windows to time indicator housings
Soldering soda lime glass metal edged windows to steel time
Soldering a kovar piece with glass to a copper base for a photon light source
Induction heating provides ability to use same equipment for both assembly and repair, hands-free heating that involves no operator skill for manufacturing, and uniform control of heat from part to part
Hermetic sealing: SS rods & glass preforms
Induction melting provides hands-free heating that involves no operator skill for manufacturing, amounts of glass are precisely controlled by the glass preforms and even flow of glass creates aesthetically pleasing bond.
To heat a stainless steel housing to 18750 F in order to fuse a piece of R6 glass to the inside of the housing.
To heat selected areas of a glass lined steel tank to 16000 F in order to perform repairs of cracks and chips.
Acerca de Inducción Calentamiento
El calentamiento por inducción es un método rápido, eficiente, preciso, repetible y sin contacto para el calentamiento de metales u otros materiales conductores de la electricidad. Los sistemas de calentamiento por inducción constan de una fuente de alimentación de inducción que convierte la potencia de la red eléctrica en una corriente alterna y la suministra a un cabezal de trabajo, y una bobina de trabajo que crea un campo electromagnético dentro de la bobina.
Consulte nuestro folleto de 4 páginas; obtenga más información sobre cómo la ciencia de la tecnología de inducción puede resolver sus problemas con el calentamiento de precisión.
Induction Heating Work Coils
The work coil is the component in the induction heating system that defines how effective and how efficiently your work piece is heated.
Read our informative brochure explaining the fundamentals of induction coils and their design.
