carbide tipping with induction image

Chauffage au carbure avec induction

Améliorez votre processus de basculement en carbure sans flamme! & Nbsp; Le chauffage par induction concentre l'énergie de votre part uniquement. & Nbsp; Vous n'avez pas besoin d'une torche ou d'un processus coûteux de lot ou de four. & Nbsp; Le carbure pointe vos matériaux dans un processus sans flamme répétable et précis.

Remarques sur l'application de chauffage au carbure populaire

Cliquez pour lire comment le chauffage par induction peut améliorer l'efficacité, l'efficacité et la sécurité de votre processus de chauffage au carbure.

Brazing and De-Brazing Diamond Carbide Inserts

Heat steel cutting bits with diamond-carbide inserts for brazing and de-brazing; the end products are cutting tools

Brazing a steel and carbide dental assembly

This configuratoin achieved the client's objective. The channel coil - specially designed by THE LAB at Ambrell- was critical to the application's success.

Brazing a copper block and carbide to create a contact shoe assembly

Induction completed the carbide brazing process more rapidly than an oven, delivering heat exactly where it's needed, operating instant on/instant off

Brazing a steel coupler and a steel wire

Induction heating enabled the brazing process to be completed within 30 seconds. The client was using a torch, and induction offers superior repeatability with no open flame and delivering heat only where it's required...

Brazing brass tube and fitting assemblies

The brass tubes and fittings heated to required temperature far more quickly than with customer's torch method, resulting in improved part quality and introducing less heat into the production environment...

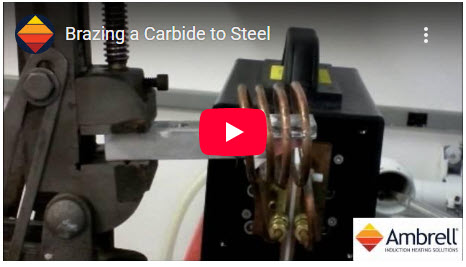

Brazing carbide tips to a steel cutter

The cutter was held in a vice and the coil was presented to heat the assembly. A ceramic rod was used to press the carbide tip onto steel cutter during brazing.

Brazing a carbide ball to a spring to create a part that controls the armature position in a motor

To heat a tungsten carbide ball and steel rod that acts as a spring to 1300 °F (704 °C) within five seconds for a brazing application to create a part that governs the armature position in a motor...

Heat a steel block with a cutout for carbide for a brazing application

Induction delivers improved quality and repeatability; client was using a torch and induction offered more precise, repeatable heating. In addition, this allowed the client to achieve the targeted heating time of 60 seconds, faster than what the torch could deliver...

Brazing carbide insert to steel pipe gripper chuck

Induction heating is proposed to braze carbide inserts into steel blocks in the assembly of pipe gripper chuck. To replace a hand/flame process, delivering significant reduction in per-part cycles...

Brazing a carbide to a stainless steel shaft for a digger used in mining

A three turn helical coil is used to braze the carbide to the shaft. The steel shaft is fluxed and the braze shim placed on top. The carbide tip is fluxed and placed on top of the shim, lining up the countersunk hole in the carbide. The hole is not fluxed because the flux outgases and causes the carbide to build up pressure and attempt to repel from the shaft...

Brazing a carbide cone to a stainless steel shaft for a gripper

A three-turn helical coil is used to braze the carbide to the stainless steel shaft. A silver solder washer is placed over the post on the shaft, the carbide is placed on the washer and flux is applied...

Braze a carbide tip to steel cutting tool

A split helical coil is used to heat the carbide & circular steel cutter evenly for the brazing application. The circular steel cutter is placed in a vise and the carbide and braze shim are placed onto the tooth...

Braze a diamond carbide tip onto band saw blade

A single turn helical coil is used for this brazing process. The saw blade and diamond carbide tip are placed in the coil...

Brazing carbide teeth to steel pipe jaw section

Induction heating provides hands-free heating that involves no operator skill for manufacturing, consistent, repeatable aesthetically pleasing brazes with even distribution of heating

Brazing a carbide and steel shank for a plug guage

Induction heating provides hands-free brazing which requires no special operator skills for manufacturing, precise, even heat is applied and is divided equally, between the shank and the carbide, providing an even flow of the braze alloy as the parts reach brazing temperatures.

Steel-carbide brazing cutting tool

The body shim and carbide are cleaned and braze flux as applied to the entire surface of the assembly. The parts are placed together in the induction coil.

Brazing carbide to steel for a surgical device

Compared to a stick-fed flame braze heating, induction heating provides consistently higher quality joints. This is critical for medical applications.

Brazing Carbide Tips to a Meat Cutter

Due to the size of the induction coil, the process allows for precise placement of the carbides on the steel shanks

Brazing carbide rotary file to high speed steel shanks

A multi-turn helical coil is used. The part is heated to determine the time required to reach the desired temperature and required heat pattern. I

Brazing Diamond Drill Inserts

Induction heating delivers reduced ring warping compared to furnace heating and decreased cycle time due to reduced ramp-up and cooldown times

shrink-fitting a carbide ring into a valve seat

A three turn helical coil is used to heat the steel valve seat. The steel valve seat is placed in the coil and heated for 50 seconds to enlarge the center hole & drop the carbide ring in for the shrink-fitting process.

Brazing Carbide Tips on Drill Bits

A brazing temperature of 1900°F was reached through the use of a unique 4 turn helical coil. D

Brazing a Steel and Carbide Assembly

To braze a steel and carbide assembly to create a mining bit for the oil and gas industry; the client is replacing their torch process with induction

Brazing a Carbide Tip and Magnetic Steel Tube

To braze carbide inserts into magnetic steel tubes; the client is replacing their inconsistent torch process with induction

Brazing, De-brazing Carbide, Steel Plates

To heat a carbide and steel plate assembly for a brazing and debrazing application in the oil and gas industry.

À propos du chauffage par induction

Chauffage par induction

Il est une méthode rapide, efficace, précise et répétable, sans contact permettant de chauffer les métaux ou les autres matériaux conducteurs d'électricité. Le matériau peut être un métal comme de l'acier, du cuivre, de l'aluminium, du laiton ou cela peut être un semi-conducteur comme du carbone, du graphite ou du carbure de silicium. Pour chauffer les matériaux non conducteurs comme le plastique ou le verre, l'induction est utilisée pour chauffer un suscepteur conducteur d'électricité, habituellement le graphite, qui transfère ensuite la chaleur du matériau non conducteur.

Lisez notre brochure de quatre pages "À propos du chauffage par induction"


Bobines d'Induction

Bobines d'Induction

La bobine d’induction, ou inducteur, est le composant du système de chauffage par induction qui détermine l’efficacité et le rendement du chauffage de la pièce.

La bobine sert à transférer l’énergie de l’alimentation en puissance et de la tête d’induction à la pièce, en créant un champ électromagnétique alternatif.


drill image

Drill bits of varying diameters (0.25" to 1.5") require a tungsten carbide cutting tip brazed to a steel drill shaft with a braze flux.  A brazing temperature of approximately 1900°F. is reached with induction heating.  The time required ranges from 11 seconds for a 0.5" diameter bit to 32 seconds for a 1.5" diameter bit.

drill image

Drill bits of varying diameters (0.25" to 1.5") require a tungsten carbide cutting tip brazed to a steel drill shaft with a braze flux.  A brazing temperature of approximately 1900°F. is reached with induction heating.  The time required ranges from 11 seconds for a 0.5" diameter bit to 32 seconds for a 1.5" diameter bit.

An Ambrell 20 kW RF power supply with a set of custom 4-turn helical coils (for the varying sizes) maximizes coupling and heating efficiency.

trepan tool image

"We replaced our old tube units with Ambrell's EASYHEAT kW power supply for brazing carbide tips onto steel. Not only are we running our product lines at faster rates, we are also achieving more consistent quality."

Tom Wheeler
Muskegon Tool

image courtesy of: Muskegon Tool Industries

You benefit from induction brazing with Ambrell equipment:

Higher quality with fewer rejects
Repeatable failure-resistant joints
Faster production with quick heat-up, cool-down cycles
Precise application of heat zone
Easy integration into production lines
