A multi-turn helical coil delivers uniform heat to the entire range of the bearing sizes in the transverse mode.
With an EASYHEAT 2 kW induction heating system, the aluminum tube heated to the required temperature within 30 seconds. Shrink fitting then took place
Induction heating is fast, presents significant energy savings over an electric oven, requires a more modest footprint than an oven and can be easily integrated into an automated process
The client currently uses an electric oven and the heating time is two hours, so at 60 seconds, the time savings with induction is very significant
The customer was using a torch, which can lead to inconsistent part quality. Induction's precise heating means the client can count on consistent results in their process
The customer was using a cold press, but it was creating part defects. This was resolved with induction heating: the process took just two minutes compared to 40 minutes and they were able to achieve their targeted production rate. Induction's fast, precise heating means the client can count on consistent results once it is implemented into their process.
The customer currently uses electric ovens that run 24 hours a day, 5 days per week and their primary concern is to save on the energy cost of heating the parts in the ovens.
A twenty-turn helical coil is used to heat the chain. The chain is fed through the coil at a rate of 1 meter per minute to reach the desired 1760 °F (960 °C) for the tempering process...

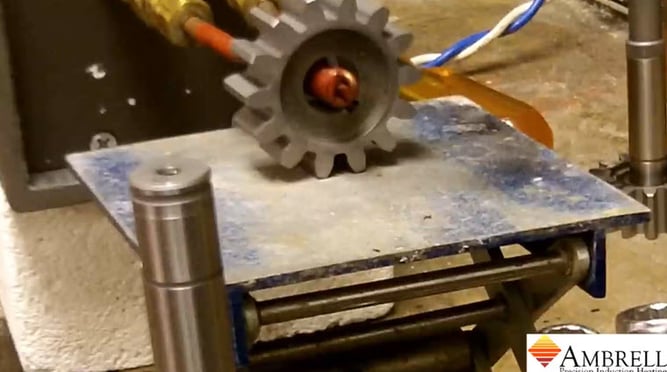

A four-turn helical internal coil is used to heat the gear bore. The coil is inserted into the gear bore and power is applied for 90 seconds to reach the required 400 °F (204 °C) and expand the gear bore...
A three turn helical coil is used to heat the steel valve seat. The steel valve seat is placed in the coil and heated for 50 seconds to enlarge the center hole & drop the carbide ring in for the shrink-fitting process.
Induction heating provides repeatable results, reduced cycle time, lower consumables cost and even distribution of heating
A three turn helical coil is used to heat the aluminum pulley. The pulley is heated to 464 °F (240 °C) in 20 seconds to expand the inner diameter and then the inner bearing is inserted to form the completed part.
Induction heating provides more accurate control of heat vs a flame burner, it heats only the knuckle, not the whole part, it prevents discoloring due to lower temperature used and increases productivity due to repeatability & ease of operation. A foot pedal & timer is used.
A four-turn helical coil heats the ring at one end of the assembly. The coil is designed to concentrate the field towards the center of the assembly where the thermal mass is greatest.
Processing with induction heat saves power and time. The complete tube does not have to reach the desired temperature as it does when heating with an oven. Being able to selectively heat a zone allows for a much quicker transfer of heat.

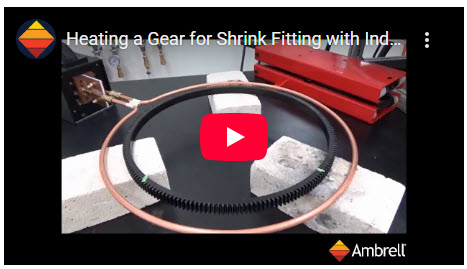

Heating a camshaft gear with a bore size of 1.630" to shrink fit over a steel shaft that has a diameter of 1.632". A temperature of 500F is required for the gear to expand 0.002" in order to slip over the shaft.
To heat an aluminum fuel pump housing measuring 8" x 4 1/2" x 3 1/2" to 375F, allowing steel parts to be inserted.
To heat aluminum and steel camshaft gears to over 500°F within 4 minutes for a shrink fitting application.
Induction heating provides a highly effective joint, accurate & repeatable heat, precise control of cycle times, uniform and repeatable results and hands-free heating that involves no operator skill for manufacturing
Pour les applications de frettage par induction, un inducteur plat ou hélicoïdal est placé à l’intérieur de la pièce à dilater. La puissance HF est appliquée jusqu’à ce que la pièce atteigne la température requise. L’inducteur est alors rapidement retiré de l’alésage, puis l’axe à insérer est glissé en position. On laisse ensuite l’assemblage refroidir. La pression augmente tandis que les composants chauffés se contractent. En fonction de la masse de matière à dilater, un inducteur plat est parfois employé. En général, les systèmes de chauffage par induction pour le frettage à chaud ont des puissances comprises entre 1 et 20 kW selon les pièces et les exigences de l'application.
Pièces métalliques : logement métallique (palier, engrenage, etc.) avec une ouverture à tolérance serrée ; insert à placer dans le logement (des tolérances serrées pour le diamètre extérieur sont également importantes)
Montage d’alignement (facultatif)
Générateur et inducteur : un chauffage rapide et précis offre les meilleurs résultats.
