Note: Shrink-fit a Steel Actuator to an Aluminum Shaft
LSR# 37621
Objective:
To shrink-fit a steel actuator to a an aluminum shaft at 350 °F (180 °C)
End Product:
automotive actuator
Equipment:
Ambrell EASYHEAT 8310, 10 kW induction heating system, equipped with a remote work head containing (2) 1.5 μF capacitors.
Materials:
steel actuator
Temperature:
365 °F (180 °C)
Frequency:
305 kHz
Testing:

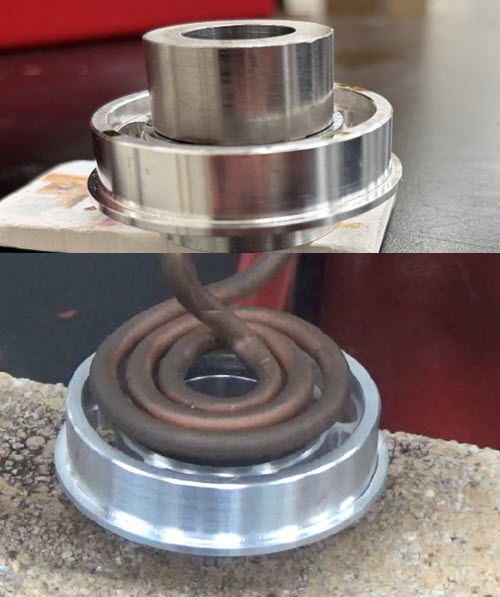

A custom-designed multi-turn pancake coil was built to generate the required heating for the application. Initial tests were conducted to optimize the power delivered to the part. Once a satisfactory heat pattern was achieved in the time frame allowed, samples were run at multiple different settings.
Benefits:
-
Accurate and repeatable results
-
Reduced cycle time, lower consumable expenses
-
Even distribution of heating
-
Ease of integration into existing production lines
-
Energy efficient
-
Hands-free heating that involves no operator skill for manufacturing
