Note: Shrink Fitting a Water Pump Shaft

Objective:

To shrink fit customer supplied parts to 800 °F

End Product:

Water pump

Equipment:

Ambrell EASYHEAT 8310, 10.0 kW, 150-400 kHz heating system, equipped with a remote work head containing two 1.5 μF capacitors.

Materials:

Customer-supplied pump parts

Temperature:

800 F-900 °Fmax

Frequency:

172 kHz

Testing:

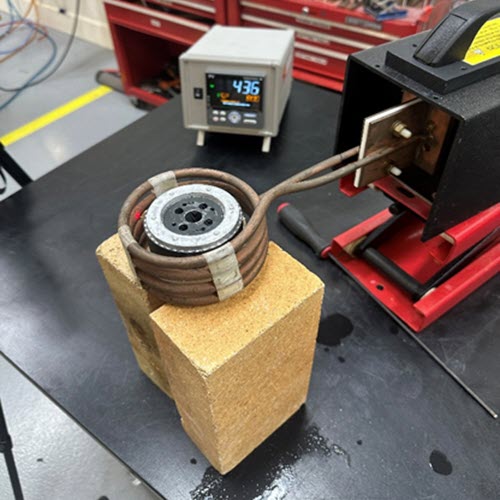

A custom-designed multi turn helical coil was built to generate the required heating for the application. Initial tests were conducted to optimize the power delivered to the part. Once a satisfactory heat pattern was achieved in the time frame allowed, samples were run at multiple different settings.

Heating time with the EH power supply shows that a temperature can be achieved to produce one part every 45 seconds.

Benefits:

  • Defined and controlled heat pattern

  • Process easily integrated into automated system

  • Even distribution of heating

Shrink Fitting a Water Pump Shaft
