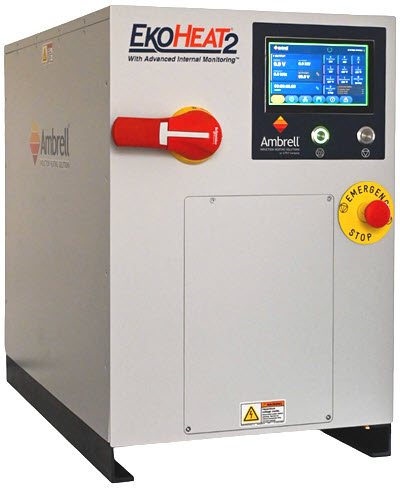

EKOHEAT 50 kW | 50-40 Induction Heating Systems

Max Power

50 kW

Frequency

5 - 40 kHz

Line Voltage

360 - 520, 3Ø Vac

Lower system costs are realized as EKOHEAT 2 power supply is designed to use a higher temperature water cooling solution over competitive models
Real-time monitoring of internal components provides better predictive fault control, enhanced preventative maintenance capabilities and more
Delivers more up-time and reduces waste due to unexpected faults
Speed and quantity of data are exponentially increased to address new Industry 4.0 standards
EKOHEAT 2 is CE marked and manufactured at our ISO 9000-2015 certified facility
30% fewer water connections, increasing reliability and reducing the chance for leaks
Digital tuning is provided via control loops for both tuning and setpoint
Inverter efficiencies more than 95% (depending on operating conditions)
EtherCAT, PROFINET and other fieldbuses available on request

SPECIFICATION	VALUE	UNITS
RF Terminal Power¹	50	kW
AC Line Power	60	kVA
AC Line Protection²	100	A
Output Frequency	5 - 40	kHz
Power Factor	0.92
AC Line Voltage	360 - 520	Vac
Display	7-inch color touchscreen
Serial Communications	RS485, Modbus RTU, Modbus TCP	Optional
Process Timer		sec
Max Ambient Temp	45 (115)	C° (F°)
Compliance³	CE, EN61010, EN55011, NRTL listed to UL 61010
Ingress Protection	IP54, NEMA 12
Dimensions	431 x 689 x 640 (17 x 27 x 25)	WxDxH mm (in)
Weight	73 (160)	kg (lb)
WATER COOLING
Flow⁴	2.0 (0.5)	l/m (g/m)
Max Input Pressure	6.0 (87)	bar (lb/in2)
Pressure Differential	2.8 – 6.0 (40 - 87)	bar (lb/in2)
Max Water Temp	45 (115)	C° (F°)
1) Fast-acting fuses 2) Suitable for incorporation into equipment for compliance with Machinery Directive 3) Power supply only; workhead coil flow requirements vary by application 4) Assumes 70% coil losses 5) Continuous, 8% overload allowed Download data sheet for more details
