EKOHEAT®  Induction Heating Systems

Max Power
300, 375 & 500 kW

Frequency
5-15 kHz

Line Voltage
360 - 520 3Ø Vac

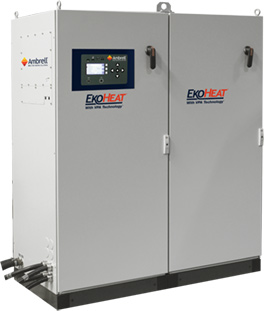

EKOHEAT 300 kW, 375 kW & 500 kW VPA induction heating systems

Power to 500 kW
Operation from 5 kHz to 15 kHz
World-class Induction Heating Systems

EKOHEAT 300 kW, 375 kW & 500 kW VPA induction heating systems  for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating parts that require deeper heat penetration, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles

Versatile

♦ Efficient heating of many part geometries, sizes and compositions
♦ Multiple capacitor configurations
♦ Multiple tap transformer configurations
♦ Voltage or Power control
♦ Repeatable, reliable heating, agile frequency tuning
♦ Through-Curie heating
♦ Movable workhead; up to 30m (100’)
♦ Sub-second to continuous cycle times
♦ Remote operation or logging with RS485 port
♦ Accepts international AC line voltages

Easy to Use

♦ User-friendly operator front panel controls
♦ System configuration from front panel
♦ Cycle timer, peak and short-cycle data capture
♦ 10 ten-step heating profiles
♦ Overload-tolerant output management
♦ 5-language display suite (EN, ES, FR, DE, IT)
♦ System Diagnostics from the front panel

EKOHEAT is CE marked and manufactured at our IS0 9001:2015 certified facility.

With the versatile EKOHEAT power control system you get rapid tuning, efficient and precise heating of your parts, power control within 0.2% resolution and an easy-to-use, easy-to-read front panel. Remote control is accomplished with 0-10V, 4-20mA inputs, RS485 serial port, 24V controls and remote E-Stop input so integration with your automated production lines is easy.

EKOHEAT technology improves return on investment by reducing your energy usage compared to gas-fired and resistive heating techniques. With very efficient power conversion and a power factor greater than 0.9, utility demand charges are reduced, lowering monthly energy bills. EKOHEAT VPA systems are designed on a host/client principle so you can add additional power should your process require it in the future.

A separate cabinet houses the resonating capacitor bank, available in several different sizes to meet customer-specific applications. The workhead may be placed up to 30 meters from the power supply. Alternatively, the resonating capacitor may be mounted in an extra bay to locate it with the power supply.

This is a water-cooled system, requiring connection to a heat exchanger or other means of dissipating heat.

Select an option below:
  • EKOHEAT 300/10
  • EKOHEAT 375/10
  • EKOHEAT 500/10

SPECIFICATION

VALUE

UNITS

RF Terminal Power1

300

kW

AC Line Power

348

kVA

AC Line Protection2

300 for 1 bay, 600 for 1 bay

A

Output Frequency

5 - 15

kHz

Power Factor

0.92



AC Line Voltage

360 - 520

Vac

Display

LCD Monochrome, 240w x 128h Pixels



Serial Communications

RS485 Standard (RS485/232 Converter Optional)

Optional

Process Timer

0.01 - 10000

sec

Max Ambient Temp

45 (115)

C° (F°)

Compliance3

CE, UKCA, EN61010, EN55011



Ingress Protection

IP54, NEMA 12



Dimensions

1718 x 848 x 1956 (67 x 33 x 77)

WxDxH mm (in)

Weight

667 (1470)

kg (lb)

WATER COOLING

Flow4

36.3 (9.6)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.6 (40-80)

bar (lb/in2)

Max Water Temp

35 (95)

C° (F°)

1) Maximum output may vary by frequency and load conditions
2) Fast-acting fuses
3) Suitable for incorporation into equipment for compliance with Machinery Directive
4) Power supply; workhead coil flow requirements vary by application

SPECIFICATION

VALUE

UNITS

RF Terminal Power1

375

kW

AC Line Power

435

kVA

AC Line Protection2

300 for 1 bay, 600 for 1 bay

A

Output Frequency

5 - 15

kHz

Power Factor

0.92



AC Line Voltage

360 - 520

Vac

Display

LCD Monochrome, 240w x 128h Pixels



Serial Communications

RS485 Standard (RS485/232 Converter Optional)

Optional

Process Timer

0.01 - 10000

sec

Max Ambient Temp

45 (115)

C° (F°)

Compliance3

CE, UKCA, EN61010, EN55011



Ingress Protection

IP54, NEMA 12



Dimensions

1718 x 848 x 1956 (67 x 33 x 77)

WxDxH mm (in)

Weight

667 (1470)

kg (lb)

WATER COOLING

Flow4

36.3 (9.6)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.6 (40-80)

bar (lb/in2)

Max Water Temp

35 (95)

C° (F°)

1) Maximum output may vary by frequency and load conditions
2) Fast-acting fuses
3) Suitable for incorporation into equipment for compliance with Machinery Directive
4) Power supply; workhead coil flow requirements vary by application

SPECIFICATION

VALUE

UNITS

RF Terminal Power1

500

kW

AC Line Power

580

kVA

AC Line Protection2

600 for each of 2 bays

A

Output Frequency

5 - 15

kHz

Power Factor

0.92



AC Line Voltage

360 - 520

Vac

Display

LCD Monochrome, 240w x 128h Pixels



Serial Communications

RS485 Standard (RS485/232 Converter Optional)

Optional

Process Timer

0.01 - 10000

sec

Max Ambient Temp

45 (115)

C° (F°)

Compliance3

CE, UKCA, EN61010, EN55011



Ingress Protection

IP54, NEMA 12



Dimensions

1718 x 848 x 1956 (67 x 33 x 77)

WxDxH mm (in)

Weight

708 (1560)

kg (lb)

WATER COOLING

Flow4

47 (12.4)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.6 (40-80)

bar (lb/in2)

Max Water Temp

35 (95)

C° (F°)

1) Maximum output may vary by frequency and load conditions
2) Fast-acting fuses
3) Suitable for incorporation into equipment for compliance with Machinery Directive
4) Power supply; workhead coil flow requirements vary by application
