EKOHEAT® 300, 375 & 500 kW SYSTEMS

meter-bolt-regular-full

Max Power
300, 375 & 500 kW

waves-sine-regular-full

Frequency
15 - 40 kHz

bolt-regular-full

Line Voltage
360 - 520, 3Ø Vac

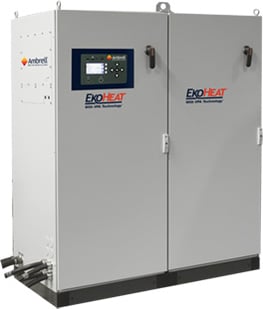

EKOHEAT 300 kW, 375 kW & 500 kW VPA induction heating systems

Induction Heating Systems

Our reliable and repeatable solutions for:

  • high-frequency of larger parts

  • heat treating, forging steel

  • heating metal and graphite crucibles

  • brazing aluminum, copper or brass

  • crystal growing

EKOHEAT 500/25 Group is Versatile

  • Efficient heating of many part geometries, sizes and compositions

  • Configurable voltage, power and transformer tapping

  • Through-Curie heating

  • Sub-second to continuous cycle times

  • Remote operation or logging with RS485 port

EKOHEAT 500/25 Group is Easy to Use

  • User-friendly operator front panel controls

  • System configuration from front panel

  • Cycle timer, peak and short-cycle data capture

  • 10 ten-step heating profiles

  • 5-language display suite (EN, ES, FR, DE, IT)

  • CE marked; IS0 9001:2015

  • rapid tuning

  • efficient, precise heating

  • power control within 0.2% resolution

Download the Data Sheet: EN

Select an option below:
  • EKOHEAT 300 kW
  • EKOHEAT 375 kW
  • EKOHEAT 500 kW

SPECIFICATION

VALUE

UNITS

RF Terminal Power1

300

kW

AC Line Power

338

kVA

AC Line Protection2

300 for 1 bay, 600 for 1 bay

A

Output Frequency

15 - 40

kHz

Power Factor

0.92



AC Line Voltage

360 - 520

Vac

Display

LCD Monochrome, 240w x 128h Pixels



Serial Communications

RS485 standard (RS485/232 converter optional)

Optional

Process Timer

0.01 - 10000

sec

Max Ambient Temp

45 (115)

C° (F°)

Compliance3

CE, UKCA, EN61010, EN55011



Ingress Protection

IP54, NEMA 12



Dimensions

1718 x 848 x 1956 (67 x 33 x 77)

WxDxH mm (in)

Weight

667 (1470)

kg (lb)

WATER COOLING

Flow4

36.3 (9.6)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.6 (40-80)

bar (lb/in2)

Max Water Temp

35 (95)

C° (F°)

1) Maximum output may vary by frequency and load conditions
2) Fast-acting fuses
3) Suitable for incorporation into equipment for compliance with Machinery Directive
4) Power supply; workhead coil flow requirements vary by application

SPECIFICATION

VALUE

UNITS

RF Terminal Power1

375

kW

AC Line Power

435

kVA

AC Line Protection2

300 for 1 bay, 600 for 1 bay

A

Output Frequency

15 - 40

kHz

Power Factor

0.92



AC Line Voltage

360 - 520

Vac

Display

LCD Monochrome, 240w x 128h Pixels



Serial Communications

RS485 standard (RS485/232 converter optional)

Optional

Process Timer

0.01 - 10000

sec

Max Ambient Temp

45 (115)

C° (F°)

Compliance3

CE, UKCA, EN61010, EN55011



Ingress Protection

IP54, NEMA 12



Dimensions

1718 x 848 x 1956 (67 x 33 x 77)

WxDxH mm (in)

Weight

667 (1470)

kg (lb)

WATER COOLING

Flow4

36.3 (9.6)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.6 (40-80)

bar (lb/in2)

Max Water Temp

35 (95)

C° (F°)

1) Maximum output may vary by frequency and load conditions
2) Fast-acting fuses
3) Suitable for incorporation into equipment for compliance with Machinery Directive
4) Power supply; workhead coil flow requirements vary by application

SPECIFICATION

VALUE

UNITS

RF Terminal Power1

500

kW

AC Line Power

580

kVA

AC Line Protection2

600 for each of 2 bays

A

Output Frequency

15 - 40

kHz

Power Factor

0.92



AC Line Voltage

360 - 520

Vac

Display

LCD Monochrome, 240w x 128h Pixels



Serial Communications

RS485 standard (RS485/232 converter optional)

Optional

Process Timer

0.01 - 10000

sec

Max Ambient Temp

45 (115)

C° (F°)

Compliance3

CE, UKCA, EN61010, EN55011



Ingress Protection

IP54, NEMA 12



Dimensions

1718 x 848 x 1956 (67 x 33 x 77)

WxDxH mm (in)

Weight

708 (1560)

kg (lb)

WATER COOLING

Flow4

47 (12.4)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.6 (40-80)

bar (lb/in2)

Max Water Temp

35 (95)

C° (F°)

1) Maximum output may vary by frequency and load conditions
2) Fast-acting fuses
3) Suitable for incorporation into equipment for compliance with Machinery Directive
4) Power supply; workhead coil flow requirements vary by application
