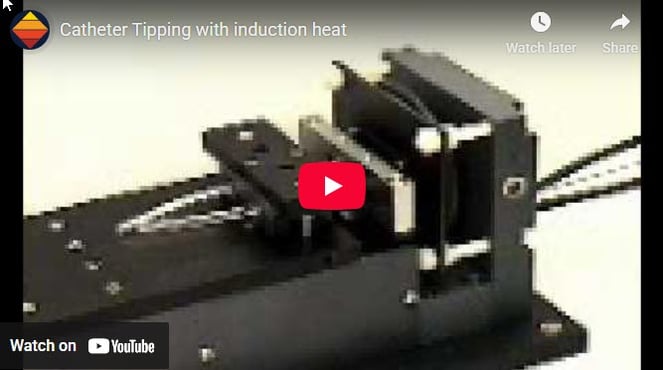

How Induction Catheter Tipping Works

Catheter tipping (also known as end forming) involves molding a rounded tip on the end of a thermoplastic tube. With catheter tipping, induction heating raises the temperature of the conductive mold. This is done without using a flame or making direct contact with the mold. The tip of the catheter is then formed by inserting the plastic tubing into the heated die or mold to form the rounded edges. The rounded end of the catheter tube allows it to be safely inserted into a human with minimal body tissue trauma.

This application requires relatively lower power, often in the range of 1 to 3 kW, depending on the parts and application requirements. Ambrell has offered catheter tipping solutions for the medical industry since 1986. Our engineering expertise in developing catheter tipping applications has been applied by manufacturers of medical instruments worldwide. Check out a number of application notes below or contact us to discuss your catheter tipping application and free application testing today.

Contact Us


Catheter Tipping Application Notes

Click to read how induction induction heating can improve the efficiency, effectiveness and safety of your heating process.


Fuse thermoplastic catheter tubes

Heating of the mandrel is from the inside out providing a smooth finish on the outside of the assemblies.

Heating Catheter Tipping Die

To heat an aluminum catheter tipping die to above 2850F within 2 to 5 seconds for the forming of catheter material.

Heating a catheter tipping die

A two turn plate concentrator coil is used to heat the die. To measure the temperature on the ID and establish the time-to-temperature relationship...

Molding a teflon catheter tip

Heat a water-cooled steel mandrel to 700°F (371ºC) to form a high quality Teflon catheter tip.

Plastic Reflow With Catheter Tubing

Heat a metal braid in a plastic catheter tube to 250°F (121.1ºC) so that another catheter tube can be bonded to it.
