EASYHEAT® 4.2, 6.0, 9.0 and 10 kW Induction Heating Systems

Max Power
4.2 kW through 10 kW

Frequency
150 - 400 kHz

Line Voltage
By model

EASYHEAT 10 kW model

EASYHEAT 4 kW, 6 kW, 9 kW and 10 kW model induction heating systems are reliable, compact solutions for heating parts with a quick, clean source of heat. With a movable workhead that can be located up to 3m (10’) from the power supply, it is ideal for repeatable, non-contact heating of parts.

Equipped to operate over a broad frequency range (150-400 kHz), EASYHEAT is ideal for heating parts of many geometries and compositions with precise power control within 50 W resolution.

Avoid time-consuming changeovers with agile tuning for single-cycle and continuous heating operations. One system can supply deep, bulk heating for brazing and soldering for more shallow, concentrated heating for case-hardening for smaller parts. Flameless, non-contact induction heating minimizes energy waste by focusing energy only on the part and zone to be heated. Select and monitor power levels from the front panel LCD and sealed touch pad. Remote power control is available for employing contact inputs, analog inputs or optional serial data port. Easily control the length of the heating cycle with a built-in programmable digital timer.

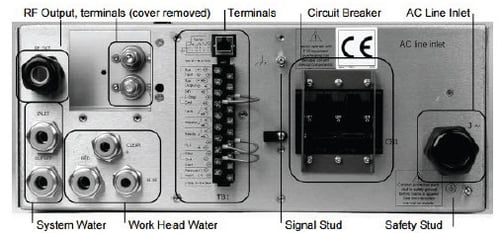

These EASYHEAT models are water-cooled systems, requiring connection to a heat exchanger or other mechanism for dissipating heat.EASYHEAT 10 kW model rear panel



Versatile

Efficient heating of many geometries
Repeatable, reliable heating with agile frequency tuning
Movable workhead; up to 3m (10’)
Remote serial operation or logging (optional)
Two 3-language display suites
Field-calibration capable

Easy-to-Use

Self-adjusting for accurate, repeatable results
View set-point, output, frequency and timer
Built-in timer, stop-watch
Push-button RF power control

Compact and Light

Smallest feature-rich 10 kW model

touch panel

EASYHEAT features a front panel programmable controller allowing you to define up to four different heating profiles, each with up to five time/power steps.

Options and Accessories

Heat exchanger or chiller
Optical pyrometer (closed-loop temperature control)
External controller (plc)
Extended work head cable lengths
Footswitch
Serial data interface
Pendant station
Start-up assistance

Select an option below:
  • EASYHEAT 4.2 kW
  • EASYHEAT 6 kW
  • EASYHEAT 9 kW
  • EASYHEAT 10 kW

SPECIFICATION

VALUE

UNITS

RF Terminal Power

4.2

kW

AC Line Power

5.2

kVA

AC Line Protection1

[35] 20

A

Output Frequency

150-400

kHz

RF Coil Current

300-750

Amax

AC Line Voltage2

[187-230 or 230-264] 370-440 or 440-520

Vac

Display

LCD Monochrome, 240w x 128h pixels, 2 line x 16 character LCD; displays frequency, power, setpoint, timer and fault descriptions



Display Language Suite3

EN, FR, IT, DE, ES



Serial Communications

Via RS485 terminal mode

Optional

Process Timer

0.01 - 10000

sec

Heating Controller

4 programmable profiles, 5 steps per profile



RF Rise Time

<5

ms

Tune Time

<5

ms

Compliance4

CE & UKCA Marked, 220 models only



Max Ambient Temp

45 (115)

C° (F°)

Weight

28 (50)

kg (lb)

Dimensions

432x610x178 (17x24x7)

WxDxH mm (in)

WATER COOLING (Sys)5

Flow

3.8 (1.0)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.5 (40-80)

bar (lb/in2)

Max Temp

Water: 35 (95)

C° (F°)

1) AC line protection:  Line levels: [230 V] or 440 V
2) AC  line voltage: Level determined by model; range factory set per order; field selectable
3) Language suite: Factory set
4) Compliance: Suitable for incorporation into equipment for compliance with Machinery Directive
5) Cooling: Includes workhead
Download data sheet for more details

SPECIFICATION

VALUE

UNITS

RF Terminal Power

6

kW

AC Line Power

7.4

kVA

AC Line Protection1

[35] 20

A

Output Frequency

150-400

kHz

RF Coil Current

300-750

Amax

AC Line Voltage2

[187-230 or 230-264] 370-440 or 440-520

Vac

Display

LCD Monochrome, 240w x 128h pixels, 2 line x 16 character LCD; displays frequency, power, setpoint, timer and fault descriptions



Display Language Suite3

EN, FR, IT, DE, ES



Serial Communications

Via RS485 terminal mode

Optional

Process Timer

0.01 - 10000

sec

Heating Controller

4 programmable profiles, 5 steps per profile



RF Rise Time

<5

ms

Tune Time

<5

ms

Compliance4

CE & UKCA Marked, 220 models only



Max Ambient Temp

45 (115)

C° (F°)

Weight

28 (50)

kg (lb)

Dimensions

432x610x178 (17x24x7)

WxDxH mm (in)

WATER COOLING (Sys)5

Flow

5.7 (1.5)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.5 (40-80)

bar (lb/in2)

Max Temp

Water: 35 (95)

C° (F°)

1) AC line protection:  Line levels: [230 V] or 440 V
2) AC  line voltage: Level determined by model; range factory set per order; field selectable
3) Language suite: Factory set
4) Compliance: Suitable for incorporation into equipment for compliance with Machinery Directive
5) Cooling: Includes workhead
Download data sheet for more details

SPECIFICATION

VALUE

UNITS

RF Terminal Power

9

kW

AC Line Power

11.2

kVA

AC Line Protection1

[35] 20

A

Output Frequency

150-400

kHz

RF Coil Current

300-750

Amax

AC Line Voltage2

[187-230 or 230-264] 370-440 or 440-520

Vac

Display

LCD Monochrome, 240w x 128h pixels, 2 line x 16 character LCD; displays frequency, power, setpoint, timer and fault descriptions



Display Language Suite3

EN, FR, IT, DE, ES



Serial Communications

Via RS485 terminal mode

Optional

Process Timer

0.01 - 10000

sec

Heating Controller

4 programmable profiles, 5 steps per profile



RF Rise Time

<5

ms

Tune Time

<5

ms

Compliance4

CE & UKCA Marked, 220 models only



Max Ambient Temp

45 (115)

C° (F°)

Weight

28 (50)

kg (lb)

Dimensions

432x610x178 (17x24x7)

WxDxH mm (in)

WATER COOLING (Sys)5

Flow

5.7 (1.5)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.5 (40-80)

bar (lb/in2)

Max Temp

Water: 35 (95)

C° (F°)

1) AC line protection:  Line levels: [230 V] or 440 V
2) AC  line voltage: Level determined by model; range factory set per order; field selectable
3) Language suite: Factory set
4) Compliance: Suitable for incorporation into equipment for compliance with Machinery Directive
5) Cooling: Includes workhead
Download data sheet for more details

SPECIFICATION

VALUE

UNITS

RF Terminal Power

10

kW

AC Line Power

12.4

kVA

AC Line Protection1

[35] 20

A

Output Frequency

150-400

kHz

RF Coil Current

300-750

Amax

AC Line Voltage2

[187-230 or 230-264] 370-440 or 440-520

Vac

Display

LCD Monochrome, 240w x 128h pixels, 2 line x 16 character LCD; displays frequency, power, setpoint, timer and fault descriptions



Display Language Suite3

EN, FR, IT, DE, ES



Serial Communications

Via RS485 terminal mode

Optional

Process Timer

0.01 - 10000

sec

Heating Controller

4 programmable profiles, 5 steps per profile



RF Rise Time

<5

ms

Tune Time

<5

ms

Compliance4

CE & UKCA Marked, 220 models only



Max Ambient Temp

45 (115)

C° (F°)

Weight

28 (50)

kg (lb)

Dimensions

432x610x178 (17x24x7)

WxDxH mm (in)

WATER COOLING (Sys)5

Flow

5.7 (1.5)

l/m (g/m)

Max Input Pressure

5.6 (80)

bar (lb/in2)

Pressure Differential

2.8 - 5.5 (40-80)

bar (lb/in2)

Max Temp

Water: 35 (95)

C° (F°)

1) AC line protection:  Line levels: [230 V] or 440 V
2) AC  line voltage: Level determined by model; range factory set per order; field selectable
3) Language suite: Factory set
4) Compliance: Suitable for incorporation into equipment for compliance with Machinery Directive
5) Cooling: Includes workhead
Download data sheet for more details

Download a Data Sheet

EN | FR | DE | ES | IT
