EKOHEAT® 10 kW & 15 kW Induction Heating Systems

Max Power
10 kW & 15 kW

Frequency
150 - 400 kHz

Line Voltage
105 - 129/198 - 250, 1Ø Vac

Get a Quote for EKOHEAT Contact Us about EKOHEAT

Download a Data Sheet

EN | FR | IT | DE | ES

Get a Quote for EKOHEAT

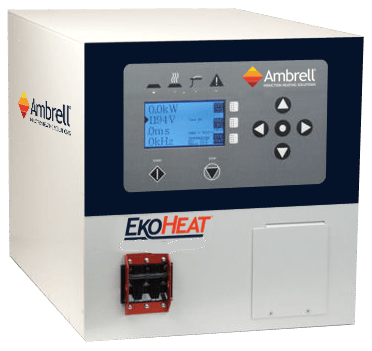

EKOHEAT_Compact

Power to 15 kW: Operation from 50kHz to 150kHz

World-class Induction Heating Systems

EKOHEAT 10 kW and 15 kW models induction heating systems for the 50-150 kHz range provide reliable and repeatable solutions for high-speed heating of smaller parts where the part geometry or the coil size requires high frequency for efficient heating. Among many typical applications are heat treating of steels, shallow case depth hardening, and heating of steel, aluminum, copper or brass for brazing, shrink fitting, curing, forming and melting..

Versatile

♦ Efficient heating of many part geometries, sizes and compositions
♦ Multiple capacitor configurations
♦ Multiple tap transformer configurations
♦ Voltage or Power control
♦ Repeatable, reliable heating, agile frequency tuning
♦ Through-Curie heating
♦ Movable workhead; up to 30m (100’)
♦ Sub-second to continuous cycle times
♦ Remote operation or logging with RS485 port
♦ Accepts international AC line voltages

Easy to Use

♦ User-friendly operator front panel controls
♦ System configuration from front panel
♦ Cycle timer, peak and short-cycle data capture
♦ 10 ten-step heating profiles
Overload-tolerant output management
♦ 5-language display suite (EN, ES, FR, DE, IT)

EKOHEAT is CE marked and manufactured at our IS0 9001:2015 certified facility.

With the versatile EKOHEAT power control system you get rapid tuning, efficient and precise heating of your parts, power control within 0.2% resolution and an easy-to-use, easy-to-read front panel. Remote control is accomplished with 0-10V, 4-20mA inputs, RS485 serial port, 24V controls and remote E-Stop input so integration with your automated production lines is easy.

EKOHEAT technology improves return on investment by reducing your energy usage compared to gas-fired and resistive heating techniques. Flameless, non-contact induction heating minimizes energy waste by focusing energy only on the part and zone to be heated. With very efficient power conversion and a power factor greater than 0.9, utility demand charges are reduced, lowering monthly energy bills. EKOHEAT systems are designed for efficient use of cooling water, further lowering your operating costs.

The EKOHEAT 10 kW and 15 kW models are water-cooled systems, requiring connection to a heat exchanger or other means of dissipating heat.

SPECIFICATION

10c/100

15c/100

UNITS

RF Terminal Power (continuous)1

9

14

kW

AC Line Power

10

15

kVA

Power Factor

0.92



Output Frequency

50 - 150

kHz

AC Line Voltage

360 - 520

Vac, 3Ø

AC Line Protection

35

A

Display

LCD Monochrome, 240w x 128h Pixels



Serial Communication

RS485 standard (RS485/232 converter optional)



Process Timer

0.01 - 10000

sec

Max Ambient Temp

45 (115)

°C (°F)

Compliance2

CE, UKCA, EN60519, EN61326-1



Ingress Protection

NEMA12



Weight (System)

32 (70)

kg (lb)

Dimensions

432 x 616 x 451 (17 x 24.25 x 17.75)

WxDxH mm (in)

WATER COOLING

Flow3

7.6 (2.0) + 2.8 (0.75)

l/m (g/m)

Max Input Pressure

5.6 (80)

Bar (lb/in2)

Pressure Differential (Range)

2.8 - 5.6 (40-80)

Bar (lb/in2)

Max Water Temp

35 (95)

°C (°F)

1) Maximum output may vary based on frequency and load conditions
2) Suitable for incorporation into equipment for compliance with Machinery Directive
3) Power supply + workhead caps; required workhead coil flow requirements vary by application
