Annealing an Aluminum Fuel Tank Fill Neck

Apr 16, 2021 3:10:32 PM / by Brett Daly posted in Induction Annealing, Applications Lab, annealing



A client contacted THE LAB at Ambrell as they needed to anneal aluminum fuel tank fill necks to 650 ºF (343 ºC) for bending. THE LAB determined that an Ambrell EKOHEAT® 30 kW, 50-150 kHz induction heating system with an eight-turn helical coil would be the right solution for the customer. The frequency for the application was 75 kHz.

Read More




Induction Annealing the End of Metal Stamp Sets

Mar 11, 2021 4:35:18 PM / by Brett Daly posted in Induction Annealing, Applications Lab, annealing




A company contacted THE LAB at Ambrell to anneal the ends of metal stamp sets of various sizes with induction heating. They had been using a torch but wanted a safer and more repeatable heating method. The client needed to heat S7 steel of varying rectangular cross-sectional sizes to 1,400-1,800 ºF (760-982 ºC). THE LAB determined that an EASYHEATTM 7.5 kW, 150-400 kHz induction heating system with four-turn or five-turn helical induction heating coils (depending on part size) would be the right solution for the client and their requirements.

Read More




Induction Annealing a Magnetic Steel Strip

Sep 17, 2020 2:29:35 PM / by Brett Daly posted in Induction Annealing, Applications Lab, annealing




A client contacted THE LAB at Ambrell to heat magnetic steel strips to 1,400 °F (760 ºC) in under one second for an annealing application. THE LAB determined that an Ambrell EASYHEATTM 9 kW, 150-400 kHz induction heating system with single position multiple-turn helical coil would be the right solution for the client.

Read More

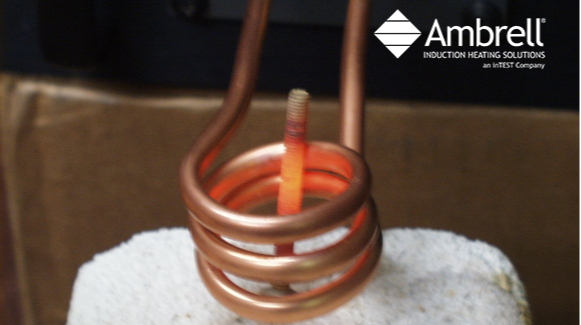

Induction Annealing Bolt Shafts

Sep 8, 2020 9:40:02 AM / by Brett Daly posted in Induction Annealing, Applications Lab, annealing




A company contacted THE LAB at Ambrell to anneal bolt shafts with induction heating. They needed to heat 431 Stainless steel bolts to 1,850 ºF (1,010 ºC) and Inconel and 8740 alloy steel bolts to 1,000 ºF (538 ºC). THE LAB determined that an EASYHEATTM 3 kW, 150-400 kHz induction heating system with a three-turn helical induction heating coil would be the optimal solution for the client.

Read More
