Note: Brazing a steel coupler and a steel wire

Objective:

To heat a steel coupler and a steel wire for a heating element to temperature for a brazing application

End Product:

electric furnaceĂ‚‚ part

Equipment:

Ambrell EASYHEAT 2kW 150-400 kHz induction heating system equipped with a remote workhead containing two 0.33 uf capacitors A single-position, three-turn helical induction heating coil designed and developed specifically for this application

Materials:

Steel coupler Steel heating element wire Braze wire alloy Black flux

Temperature:

1400 °F (760 °C)

Frequency:

305 kHz

Testing:

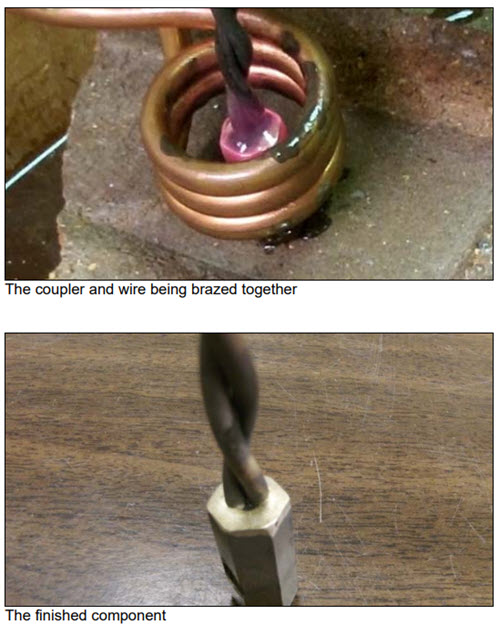

The parts were fluxed and two small 0.3 in  (8mm) long pieces of wire were placed into the coupler in ™s cavity. The power was turned on and the assembly heated to temperature within 30 seconds. During initial testing, the braze preform melted and it was noticed that the cavity could still hold more alloy. Consequently, more alloy was stick fed until the cavity was filled. The alloy stuck to the wire, likely due to a coating on the wire. Cleaning the wire prior to the brazing process eliminates that issue.

Benefits:

  • Speed: Induction enabled the brazing process to be completed within 30 seconds

  • Consistency: The client was using a torch, and induction offers superior repeatability

  • Safety: There is no open flame with induction, so it"s a more safe heating option than a torch

  • Efficiency: Induction delivers heat only where it"s required, making it more efficient than torch heating

Brazing a steel coupler and a steel wire
