EKOHEAT Compact Models

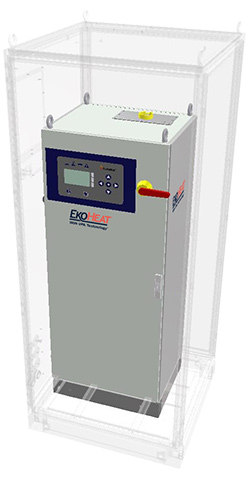

EKO-COMPACT-250

With our versatile Compact Series EKOHEAT power control system you get rapid tuning, efficient and precise heating of your parts, power control within 0.2% resolution and an easy-to-use, easy-to-read front panel. Remote control is accomplished with 0-10V, 4-20mA inputs, RS485 serial port, 24V controls, Modbus and remote E-Stop input so integration with your automated production lines is easy. All of this functionality is now available in an enclosure size that is 50% smaller than our standard single-bay systems.

EKOHEAT induction heating systems for the 15 to 40 kHz range provide reliable and repeatable solutions for heating larger parts that require higher frequencies. Among the many typical applications are heat treating of steels, preheating for forging of steel, aluminum, copper or brass, crystal growing, and heating of graphite and metal crucibles.

Our full EKOHEAT catalog

EKOHEAT Compact 10 kHz Family



EKOHEAT Compact 75/10

Max Power: 75 kW
Frequency: 5 - 15 kHz
Line Voltage: 360 - 520, 3 ph Vac


Data Sheets:

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts.

Request a Quote




EKOHEAT Compact 100/10

Max Power: 100 kW
Frequency: 5 - 15 kHz
Line Voltage: 360 - 520, 3 ph Vac


Data Sheets:

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts.

Request a Quote




EKOHEAT Compact 125/10

Max Power: 125 kW
Frequency: 5 - 15 kHz
Line Voltage: 360 - 520, 3 ph Vac


Data Sheets:

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts.

Request a Quote


EKOHEAT Compact 25 kHz Family



EKOHEAT Compact 75/25

Max Power: 75 kW
Frequency: 15 - 40 kHz
Line Voltage: 360 - 520, 3 ph Vac


Data Sheets:

EKOHEAT induction heating systems for 50-150 kHz range provide reliable and repeatable solutions for high-speed heating of smaller parts where the part geometry or the coil size requires high frequency for efficient heating.

Request a Quote




EKOHEAT Compact 100/25

Max Power: 100 kW
Frequency: 15 - 40 kHz
Line Voltage: 360 - 520, 3 ph Vac


Data Sheets:

EKOHEAT induction heating systems for 50-150 kHz range provide reliable and repeatable solutions for high-speed heating of smaller parts where the part geometry or the coil size requires high frequency for efficient heating.

Request a Quote




EKOHEAT Compact 125/25

Max Power: 125 kW
Frequency: 15 - 40 kHz
Line Voltage: 360 - 520, 3 ph Vac


Data Sheets:

EKOHEAT induction heating systems for 50-150 kHz range provide reliable and repeatable solutions for high-speed heating of smaller parts where the part geometry or the coil size requires high frequency for efficient heating.

Request a Quote
